DEMO_WFBT - Auditory filterbanks built using filterbank tree structures

Description

This demo shows two specific constructions of wavelet filterbank trees using several M-band filterbanks with possibly different M (making the thee non-homogenous) in order to approximate auditory frequency bands and a musical scale respectively. Both wavelet trees produce perfectly reconstructable non-redundant representations.

The constructions are the following:

  1. Auditory filterbank, approximately dividing the frequency band into intervals reminisent of the bask scale.
  2. Musical filterbank, approximately dividing the freq. band into intervals reminicent of the well-tempered musical scale.

Shapes of the trees were taken from fig. 8 and fig. 9 from the refernece. Sampling frequency of the test signal is 48kHz as used in the article.

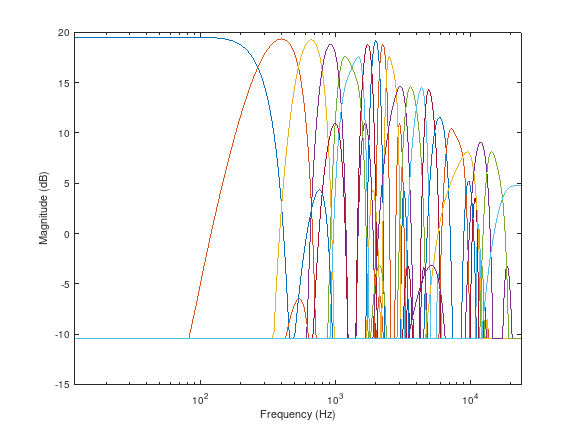

Frequency responses of the auditory filterbank.

Both axes are in logarithmic scale.

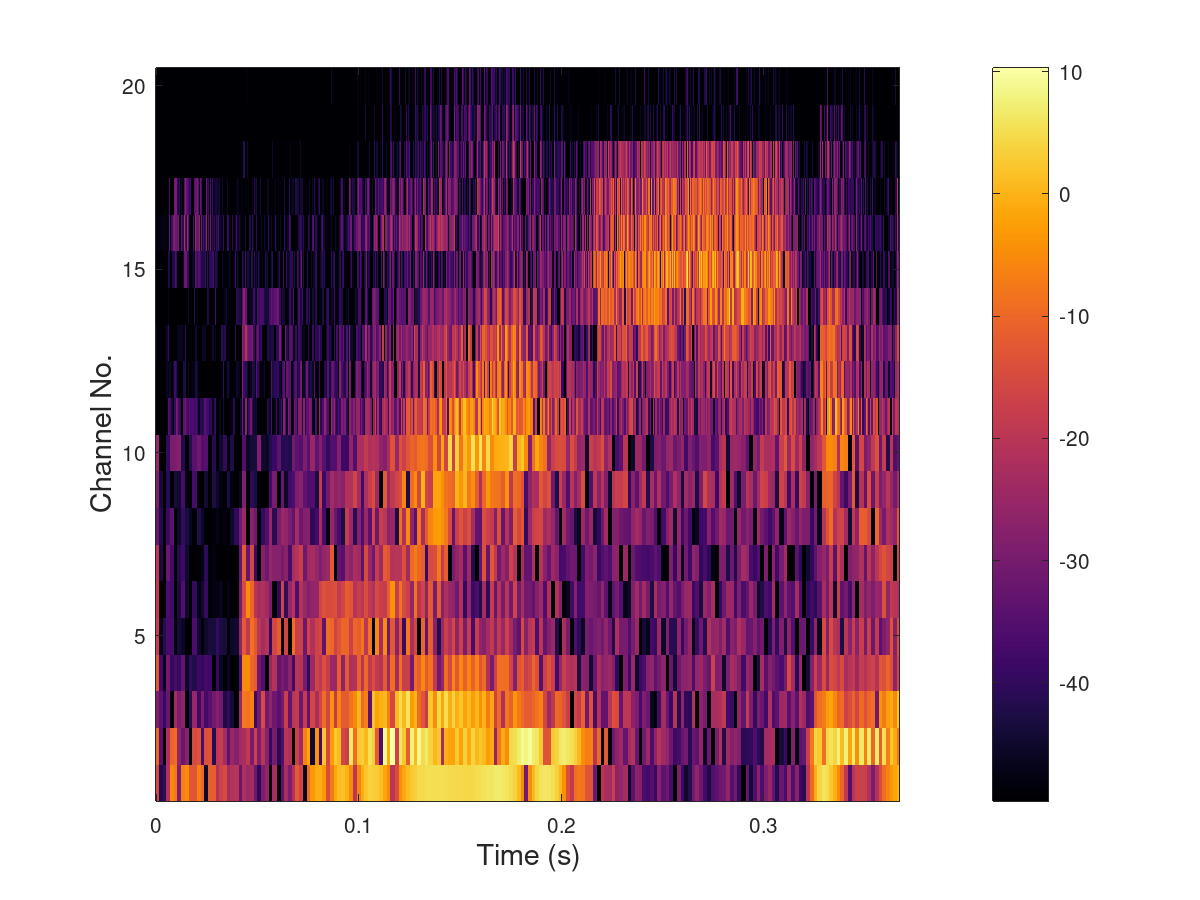

TF plot of the test signal using the auditory filterbank.

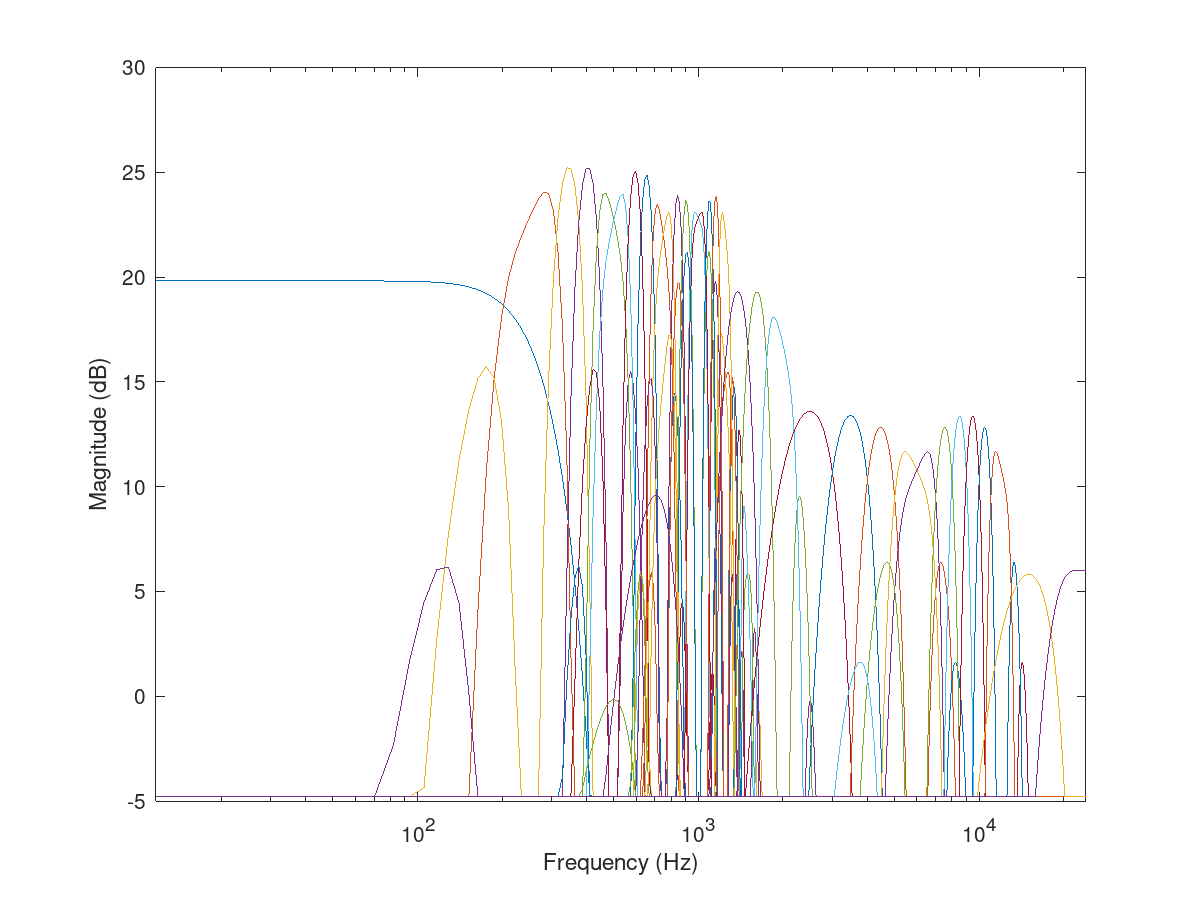

Frequency responses of the musical filterbank.

Both axes are in logarithmic scale.

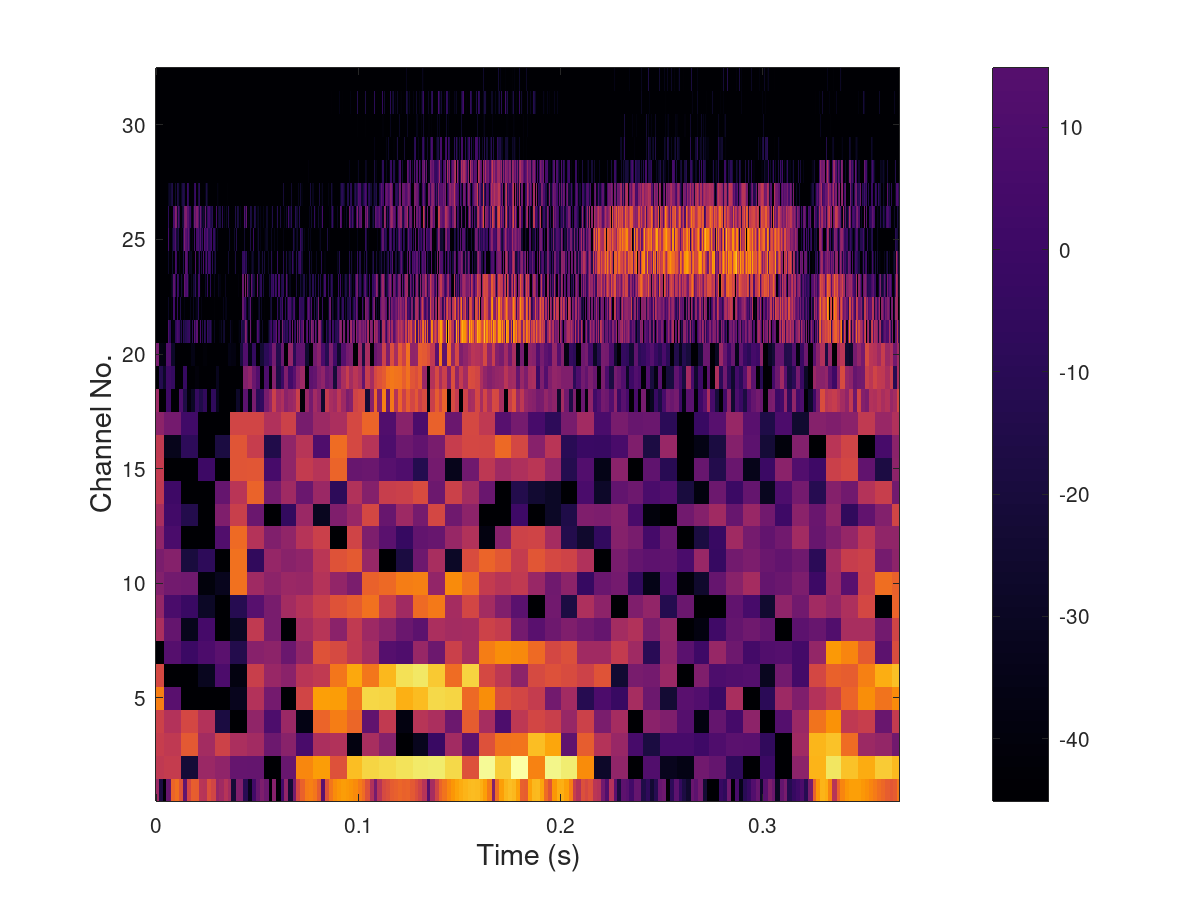

TF plot of the test signal using the musical filterbank.

References:

F. Kurth and M. Clausen. Filter bank tree and M-band wavelet packet algorithms in audio signal processing. Signal Processing, IEEE Transactions on, 47(2):549--554, Feb 1999. [ DOI ]
