DEMO_NSDGT - Non-stationary Gabor transform demo

Description

This script sets up a non-stationary Gabor frame with the specified parameters, computes windows and corresponding canonical dual windows and a test signal, and plots the windows and the energy of the coefficients.


Windows + dual windows

This figure shows the window functions used and the corresponding canonical dual windows.

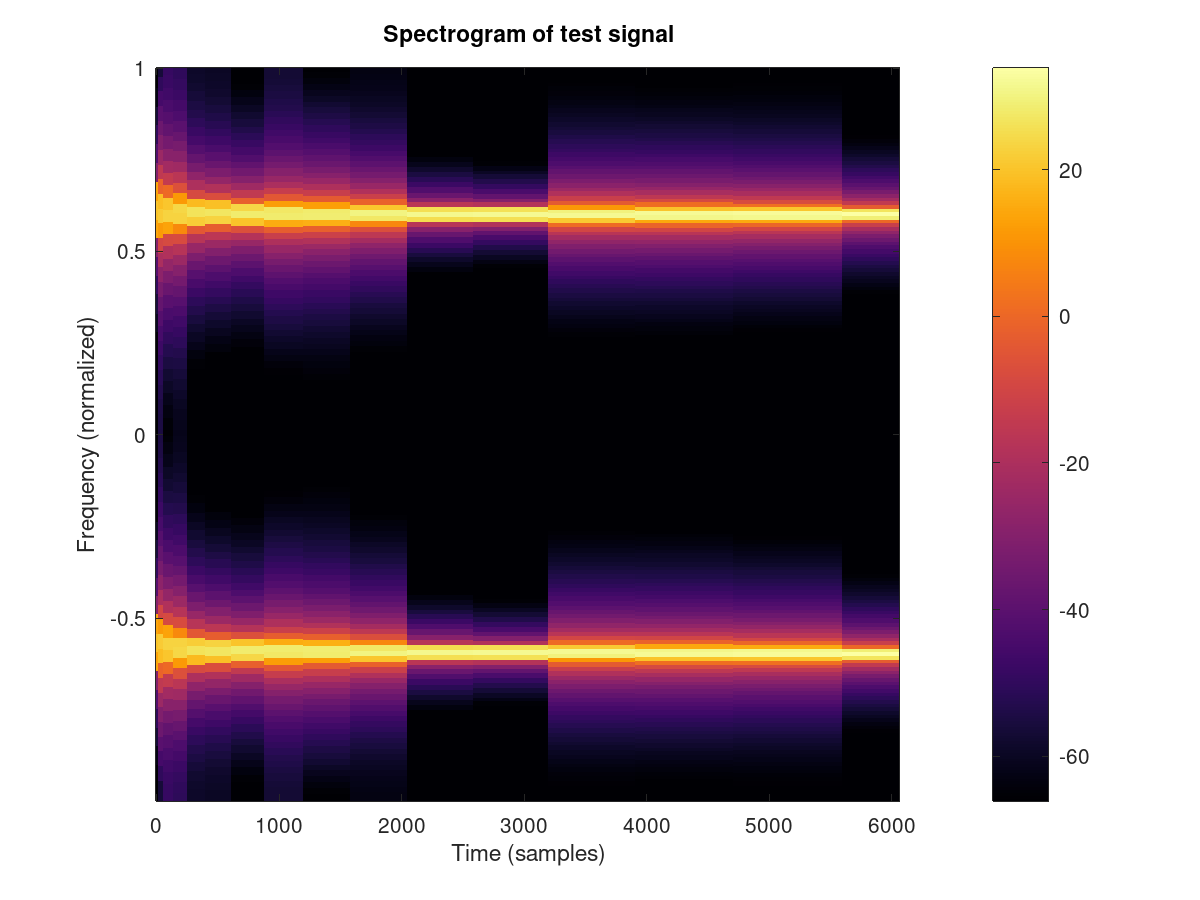

Spectrogram (absolute value of coefficients in dB)

This figure shows a (colour-coded) image of the nsdgt coefficient modulus.
